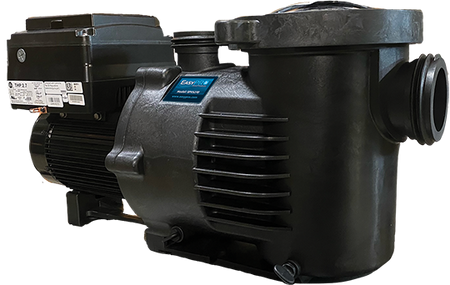

SPVS270 - EasyPro® Swim-Rated 268 GPM (max) 2.70 hp High Flow Variable Speed Pump
EasyProThe SPVS270 is an EasyPro swim-rated variable-speed pump rated to 268 gpm. The motor runs across a range of speeds from a digital keypad, so flow can be tuned to the feature rather than running flat out around the clock.
- Variable speed — programmable from a digital keypad
- Totally enclosed, fan-cooled (TEFC) motor
- Self-priming, with strainer basket
- Unions included
- Hard-wired — no power cord supplied
Specifications
| Horsepower | 2.7 hp |
| Maximum flow | 268 gpm |
| Maximum head | 57' |
| Inlet / outlet | 3" |
| Voltage | 230 V |
| Phase / frequency | single phase, 60 Hz |
| Motor enclosure | TEFC |
| Speed range | 1800-3450 |
| Shipping weight | 57 lbs. |
| Warranty | 18 months |
| Flow at 3450 rpm | 268 gpm (9.70 amps) |
| Flow at 2600 rpm | 195 gpm (4.13 amps) |
| Flow at 1800 rpm | 140 gpm (2.25 amps) |
How it fits your pond
A variable-speed pump lets you run high flow when you want the feature working hard and throttle back the rest of the time, which is where most of the energy saving on a large water feature comes from. These are external, self-priming pumps — they mount dry beside the pond rather than sitting in it, and they are hard-wired rather than cord-and-plug, so plan the electrical and the plumbing runs before installation.
This is an external, dry-mount pump. It installs beside the pond, not in it.
Part Number: SPVS270
